Geocell Design in Drummondville

Site investigations you can build on.

LEARN MORE

In Drummondville, many projects run into the same problem: soft silty clays and high water tables that turn a simple road base into a mud pit. We see it every time spring thaw arrives. Geocell design gives us a way to confine granular fill, spread loads, and stop lateral spreading without importing massive amounts of rock. Before we finalize a cell layout, we always run a permeability test on site soils to confirm drainage behavior, because if water gets trapped inside the cells, the whole system loses its grip. It is a practical fix that keeps construction moving even on marginal terrain.

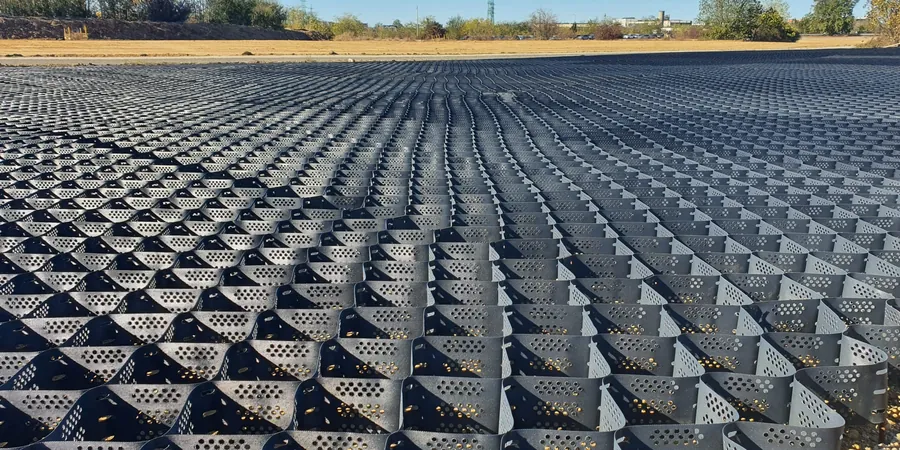

Illustrative image of Geocell design in Drummondville
Geocells confine the infill, but if the subgrade beneath them cannot drain, the whole system lifts during freeze-thaw cycles.

Our service areas

Methodology and scope

We follow the NBCC 2020 geotechnical provisions and ASTM D6462-17 standard practices for cellular confinement systems. For Drummondville, where frost depth reaches 1.8 meters, the cell height and infill material must be selected to resist freeze-thaw cycling. The design process includes:
  • Shear strength verification of infill using triaxial tests (CSA + CSA + CSA + CSA + CSA + ASTM D2850 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2))
  • Pullout resistance checks for anchor tendons
  • Long-term creep analysis per GRI-GC8
We also cross-reference with geogrid reinforcement when the subgrade CBR is below 3. For slopes steeper than 2:1, we add slope stability analysis to confirm the global factor of safety. Every parameter comes from site-specific data, not textbook guesses.
Technical reference — Drummondville

Local considerations

The biggest mistake we see in Drummondville is installing geocells without a proper subgrade evaluation. Contractors lay the mats, fill them with gravel, and a year later the road has longitudinal cracks. Why? The clay below consolidated unevenly under the load, or the cells were too short for the actual traffic axle weight. If the infill is not compacted in two lifts, the cells bulge. If the anchor pins are too short for the frost zone, the whole mat shifts. We test the subgrade CBR and moisture content before we design the cell layout, period.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.org

Applicable standards

NBCC 2020 – Geotechnical design, ASTM D6462-17 – Geocell installation, GRI-GC8 – Creep reduction factor

Technical parameters

ParameterTypical value
Cell height (mm)75 – 200
Weld spacing (mm)330 – 660
Infill aggregate size (mm)20 – 40
Design life (years)30 – 50
Max slope angle (deg)35

Frequently asked questions

What is the typical cost range for geocell design in Drummondville?

For a full geocell design package including subgrade testing, cell layout, and anchor details, the typical range is CA$1.260 – CA$3.580. The final price depends on slope height, soil conditions, and whether we need additional triaxial or creep testing.

How deep does frost penetration affect geocell performance in Drummondville?

Frost depth in Drummondville reaches 1.8 meters. If geocells are placed in the active frost zone without adequate drainage, ice lenses can form beneath the cells and lift the entire mat. We always design a drainage layer below the cells and specify infill with low frost susceptibility.

Can geocells be used on slopes steeper than 2:1 in Drummondville clay?

Yes, but only after we verify the subgrade shear strength and install deep anchor pins of at least 1.2 meters. For slopes steeper than 2:1, we run a global slope stability analysis and may combine geocells with geogrid reinforcement to achieve a factor of safety above 1.5.
