Proctor Test (Standard or Modified) in Drummondville

Drummondville grew rapidly during the postwar industrial boom, with large factory complexes and residential subdivisions spreading over the clay plains of the St. Lawrence Lowlands. The region's glacial and marine clays, known as Champlain Sea deposits, present a distinct challenge for earthworks. Achieving the right compaction density on these fine-grained soils demands careful moisture control and a reliable Proctor test program. Many local contractors rely on the Standard Proctor (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) for routine fills and the Modified Proctor (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) when higher energy compaction is specified for structural backfills or road subgrades. Before placing fill, experienced teams often run a calicatas exploratorias to identify soil variability across the site.

In Drummondville's Champlain Sea clays, the difference between Standard and Modified Proctor optimum moisture can shift up to 4 percent, altering the entire compaction strategy.

Our service areas

Ground improvement

Unsaturated soil analysis ›Stone column design ›Dynamic compaction design ›Deep Soil Mixing (DSM) design ›Geotechnical drainage design ›

VIEW ALL GROUND IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Debris flow analysis ›Factor of safety (FS) calculation ›

VIEW ALL SLOPES & WALLS ›

Foundations

Differential settlement analysis ›Settlement analysis ›Bearing capacity analysis ›Foundations on fill (analysis) ›Shallow foundation design ›

VIEW ALL FOUNDATIONS ›

Methodology and scope

The Canadian Foundation Engineering Manual and the NBCC 2020 both reference the Proctor test as the primary method for establishing maximum dry density and optimum moisture content. In Drummondville, where clay content can exceed 60 percent in some pockets, the Standard Proctor (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) typically yields maximum dry densities between 1.55 and 1.75 Mg/m³. The Modified Proctor (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)), using a 44.5 kN rammer dropped from 457 mm, applies roughly 4.5 times the compactive effort. This higher energy is specified for pavement subgrades under heavy truck traffic and for structural fill beneath shallow footings. The test procedure includes:

Preparing four to five soil samples at different moisture contents

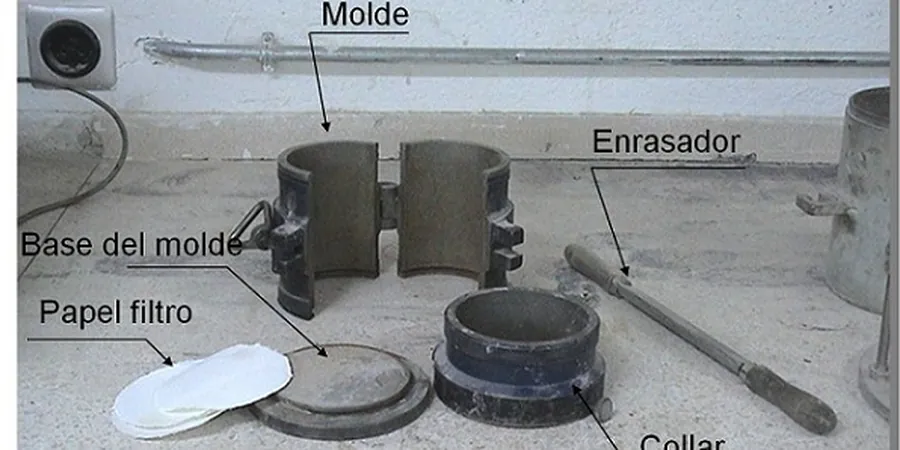

Compacting each sample in a 101.6 mm or 152.4 mm mold in three or five layers
Determining wet density, oven-dry moisture content, and plotting the compaction curve

When the project involves granular borrow sources, the team often pairs the Proctor results with a granulometria to confirm the material's particle size distribution meets local specifications.

Technical reference — Drummondville

Local considerations

In Drummondville, many times we see fill placed too dry because the Proctor optimum moisture for the local clay is higher than expected. The result is a loose, brittle layer that settles unevenly under load. On the other hand, over-wetting the soil pushes it past the plastic limit, turning the fill into a sticky mess that cannot be compacted to target density. Either mistake leads to costly rework or long-term differential settlement under slabs and pavements. Running a Proctor test before any major earthmoving campaign eliminates this guesswork and keeps the project on schedule.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.org

Applicable standards

ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (Standard Proctor), ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (Modified Proctor), NBCC 2020 Division B Part 4, CSA A23.3-19 (concrete and fill specifications)

Technical parameters

Parameter	Typical value
Compaction energy (Standard)	600 kN-m/m³ (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2))
Compaction energy (Modified)	2,700 kN-m/m³ (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2))
Mold diameter	101.6 mm or 152.4 mm
Layers per test	3 (Standard) / 5 (Modified)
Typical max dry density in Drummondville clay	1.55 – 1.75 Mg/m³
Optimum moisture content range	14% – 22% for local clays
Test duration	24 – 48 hours including oven drying

Frequently asked questions

What is the difference between Standard and Modified Proctor in Drummondville?

The Standard Proctor (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) uses 600 kN-m/m³ of compactive effort. The Modified Proctor (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) uses 2,700 kN-m/m³ — about 4.5 times more energy. For Drummondville's clay soils, the Modified Proctor typically yields a maximum dry density 0.05 to 0.10 Mg/m³ higher and an optimum moisture content 2 to 4 percent lower than the Standard Proctor.

How much does a Proctor test cost in Drummondville?

The typical range for a Standard or Modified Proctor test in Drummondville is CA$160 to CA$270 per sample. The final price depends on the number of points in the compaction curve and whether the sample requires additional preparation like drying or sieving.

How many soil samples do I need for a Proctor test?

One representative sample of about 30 to 50 kg is sufficient for a single Proctor test. The lab splits it into four or five moisture increments. For large sites with variable soil types, the geotechnical engineer usually recommends one Proctor test per distinct soil unit or borrow source.

When should I request the Modified Proctor instead of the Standard Proctor?

The Modified Proctor is required when the fill will support heavy loads such as truck traffic, industrial floor slabs, or airport pavements. For typical residential backfill and light-duty roads in Drummondville, the Standard Proctor is adequate. Check the project specifications: many municipal contracts in Drummondville call for Modified Proctor on road subgrades.
