Geotechnical Road Drainage in Drummondville

Site investigations you can build on.

LEARN MORE

A few years back, we got called to a site off Boulevard Saint-Joseph where a new subdivision had standing water on the road base after every rain. The contractor had laid the gravel but skipped the drainage layer. Within a month, the subgrade turned to mush and the whole section had to be dug out. That job taught us that getting the geotechnical road drainage right from the start saves everyone time and money. Before we recommend any system, we run field tests to measure permeability and water table depth. In Drummondville, where spring thaws can saturate the ground for weeks, a standard roadside ditch often isn't enough. We combine surface and subsurface drainage solutions to keep the road structure dry and stable year-round.

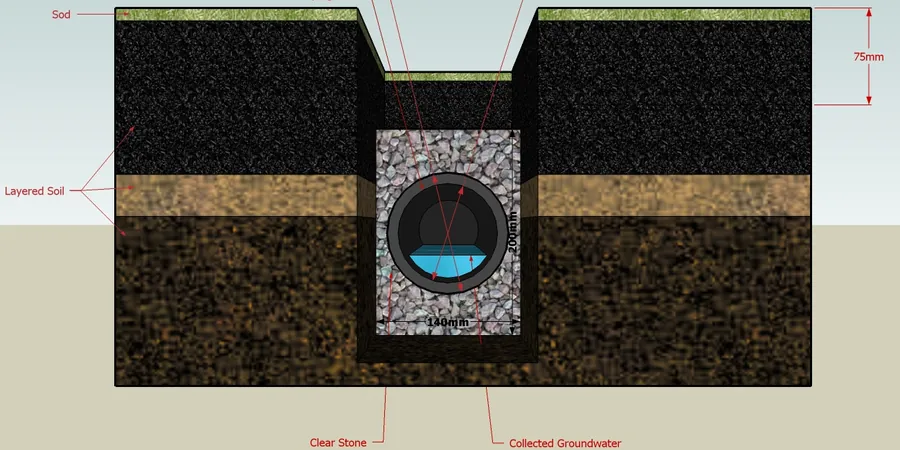

Illustrative image of Geotechnical road drainage in Drummondville
In clay soils around Drummondville, surface drainage alone never works. You need a subsurface system that intercepts water before it reaches the subgrade.

Our service areas

Methodology and scope

Drummondville grew fast in the 1970s and 1980s, with new streets laid over former agricultural fields. Those old clay soils drain poorly, so any road built without proper drainage starts showing cracks and potholes within a few seasons. We see a lot of pavement failures here that trace back to water trapped under the asphalt. That is why we always start with a full site assessment that includes soil classification and permeability testing. For example, we use the permeability in the field to determine the natural drainage rate of the subgrade. If the clay is tight, we design a system of geocomposite drains and granular blankets to move water away from the road base. We also check the compaction levels with a density test using sand cone to make sure the fill meets the project specs. Getting those numbers right in the lab and on site makes the difference between a road that lasts twenty years and one that fails in five.
Technical reference — Drummondville

Local considerations

The biggest risk we deal with in Drummondville is water sitting against the road base for extended periods. The clay soils here can hold moisture for weeks after a heavy rain, and when that water freezes in winter, it heaves the pavement. In spring, the thaw turns the subgrade into a soft layer that cannot support traffic loads. We have measured water tables within 0.5 m of the surface in low-lying areas near the Saint-François River. If the drainage system is undersized or missing, the road starts showing longitudinal cracks and edge settlement within the first year. That is why we always design for a 2‑year, 24‑hour storm event and include a factor of safety on pipe capacity.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.org

Applicable standards

NBCC 2020 (National Building Code of Canada), ASTM D6913 (Particle Size Distribution), ASTM D2434 (Permeability of Granular Soils)

Technical parameters

ParameterTypical value
Subgrade permeability (k)1x10⁻⁶ to 1x10⁻⁸ m/s
Drainage blanket thickness300–600 mm granular
Geotextile filtration opening0.15–0.30 mm (ASTM D4751)
Edge drain spacingEvery 15–30 m along road
Pipe diameter (perforated)100–200 mm PVC slotted

Frequently asked questions

Why is geotechnical road drainage especially important in Drummondville?

Drummondville sits on clay and silt deposits that drain very slowly. During spring thaw and heavy rain, water saturates the subgrade and reduces its bearing capacity. Without proper drainage, roads develop cracks, potholes, and edge settlement within a few seasons.

What tests do you perform before designing a drainage system?

We run a standard set: soil classification (CFEM (Canadian Foundation Engineering Manual)), permeability tests (ASTM D2434), and compaction control via sand cone (ASTM D1556). We also measure the groundwater level over several weeks to understand seasonal fluctuations.

How much does a geotechnical road drainage study cost in Drummondville?

For a typical residential road section, the study ranges between CA$1.130 and CA$2.940, depending on site access, number of test pits, and the complexity of the drainage design. We give a firm quote after the initial site visit.

Do you work with municipalities and private developers?

Yes, we serve both. We have done drainage studies for the Ville de Drummondville on municipal road upgrades and for private developers building new subdivisions. Our reports are accepted by local permitting offices.
